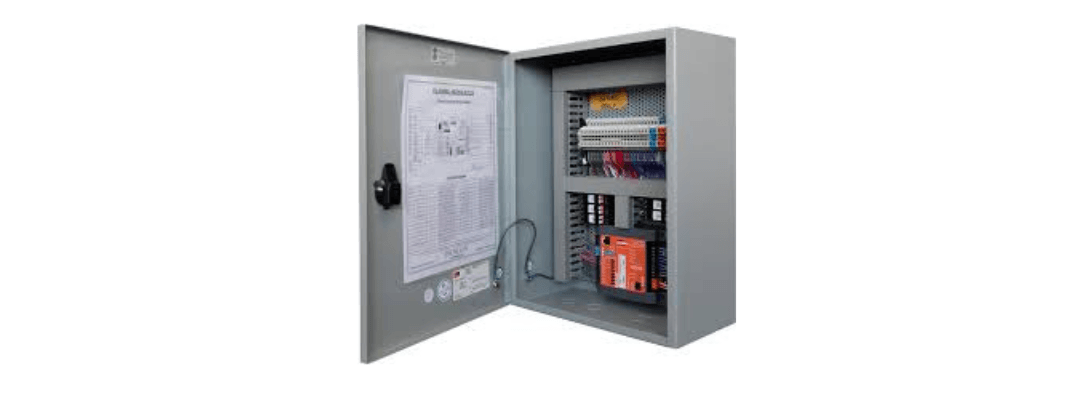

Ideal Properties of a Hvac Control Panels

Ideal Properties of an HVAC Control Panel

An HVAC (Heating, Ventilation, and Air Conditioning) control panel is a crucial component for managing and automating the operation of HVAC systems in commercial, industrial, and residential buildings. It provides centralized control, ensuring efficient operation, optimal comfort, and energy savings. To meet the diverse demands of HVAC systems, an ideal HVAC control panel must offer reliability, ease of use, energy efficiency, and integration with building automation systems. Below are the ideal properties of an HVAC control panel:

1. Precise Temperature and Humidity Control

• High-Precision Sensors: Advanced control panels incorporate real-time temperature and humidity sensors for accurate environmental regulation.
• Multi-Zone Climate Management: Zonal control enables customized HVAC settings in different building areas, enhancing comfort and reducing energy use.

2. Energy Efficiency Optimization

• VFD (Variable Frequency Drive) Integration: Adjust motor speeds of fans and pumps based on load demand, significantly lowering electricity usage.
• Demand-Based Operation: Intelligent control adjusts HVAC output based on occupancy and external conditions.
• Real-Time Energy Monitoring: Provides live feedback on energy consumption, helping facilities reduce operating costs through informed decisions.

3. Intuitive User Interface

• User-Friendly HMI: Graphical displays and touchscreens enable easy access to key metrics like temperature, humidity, and system performance.
• Remote Monitoring & Control: Access the HVAC system via web portals or mobile apps, ideal for multi-location property management.

4. Smart Automation and Scheduling

• PLC Integration: Programmable Logic Controllers automate equipment cycles like start/stop routines, ventilation shifts, and compressor management.
• Custom Time-Based Scheduling: Operate HVAC systems only during occupied hours to extend equipment life and conserve energy.

5. Seamless BMS Integration

• Centralized Building Control: Enables full integration with lighting, fire alarms, and security systems through a BMS.
• Support for Industry Protocols: Compatibility with BACnet, Modbus, and LonWorks ensures future-ready smart building connectivity.

6. Real-Time Monitoring & Fault Diagnostics

• Continuous Performance Tracking: Real-time data collection on airflow, pressure, and temperatures enables quick intervention.
• Smart Alerts & Troubleshooting: Diagnostic tools trigger alarms for faults or abnormal performance, reducing downtime and repair costs.

7. Ventilation & Indoor Air Quality Management

• Demand-Controlled Ventilation (DCV): Adjust ventilation rates based on real-time CO₂ levels or occupancy.
• IAQ Sensor Integration: Monitors pollutants like VOCs, CO₂, and particulate matter to maintain a healthy indoor environment.
• Filtration Control: Manages HEPA filters and UV air purifiers for optimal air purification with energy efficiency.

8. Modular and Scalable Architecture

• Modular Panel Design: Easily upgrade or expand without system overhauls—ideal for growing facilities or retrofits.
• Scalable to Any Size: Designed to accommodate additional zones, equipment, or new technologies over time.

9. Safety Features and Regulatory Compliance

• Emergency Shutdown System (ESS): Instantly halts HVAC functions during fire, gas leaks, or safety breaches.
• Standards Compliance: UL 508A, NFPA 70 (NEC), and other regulatory compliances ensure safety and performance.
• Fire System Integration: Automatically disables HVAC in the event of fire alarms to prevent smoke circulation.

10. Energy Recovery and Optimization

• Support for ERVs & HRVs: Recovers waste heat from exhaust air to precondition fresh air, lowering overall HVAC load.
• Advanced Energy Algorithms: Uses predictive controls to optimize energy use based on historical and real-time data.

11. Integration with External Weather Data

• Outdoor Sensor Compatibility: Adjust HVAC behavior based on ambient weather—temperature, humidity, or wind.
• Weather Forecast Integration: Proactively modify operations ahead of weather changes to reduce energy waste.

12. Cybersecurity for Remote Access

• Secured Communication: Encrypted protocols (SSL, VPN) safeguard data and remote connectivity.
• Firewalls & Intrusion Prevention: Ensures robust protection against cyber threats to HVAC infrastructure.

13. Data Logging and Automated Reporting

• Historical Data Analysis: Logs system performance data for trend analysis and performance benchmarking.
• Automatic Report Generation: Generate reports on energy usage, efficiency, and maintenance needs—ideal for audits and compliance tracking.

14. Renewable Energy System Compatibility

• Green Energy Integration: Supports solar, wind, or hybrid systems to power HVAC operations sustainably.
• Energy Storage Utilization: Manages battery usage during peak hours to reduce utility charges and enhance energy independence.
